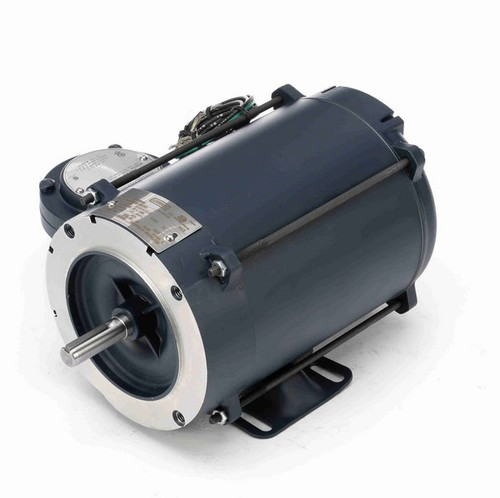

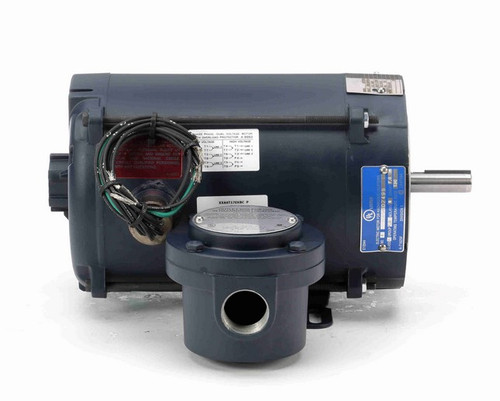

114628.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame Explosion-Proof (Rigid Base) 3-Phase Motor

114628.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame Explosion-Proof (Rigid Base) 3-Phase Motor

SKU:
114628
Weight:
31.00 LBS
Width:
9.00 (in)
Height:
11.00 (in)
Depth:
17.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
208/230/460V
Horsepower:
1/2 HP
RPM:
1800
Phase:
Three Phase
Frame:
56C
Enclosure:
TENV
Hertz:
60 Hz
Amperage:
1.6/0.8 Amps
Bearings:
Ball Bearings
Service Factor:
1.0
Insulation Class:
Class B
Mounting:
Rigid Base
Was: $1,072.95
Now: $909.08
Adding to cart… The item has been added
  • 1/2 hp 1800 RPM, 1.8-1.6/0.8 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload Protection = Auto
  • Rigid Base, Reversible, Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 114628.00

!
