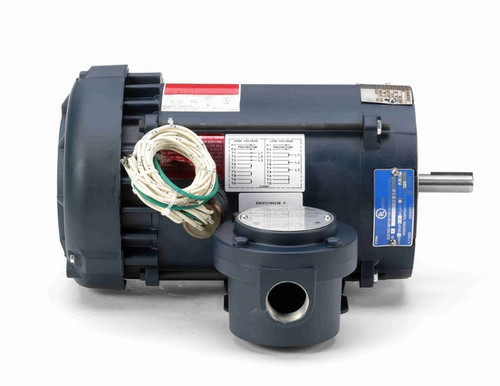

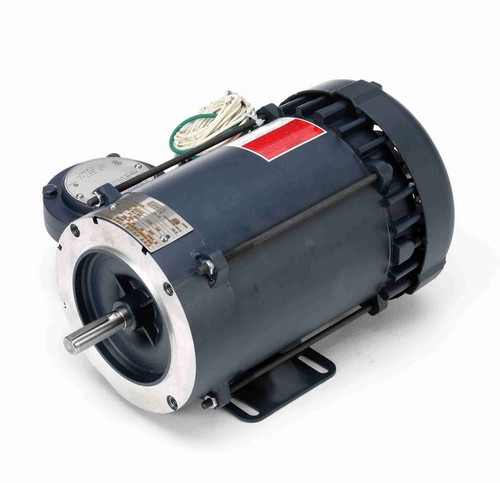

116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

Leeson

116190.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

(No reviews) Write a Review
$1,037.30
$878.95
SKU 116190.00
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 2.4/1.2 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 2.3-2.4/1.2 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload Protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 116190.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 2.4/1.2 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
