Leeson/Marathon

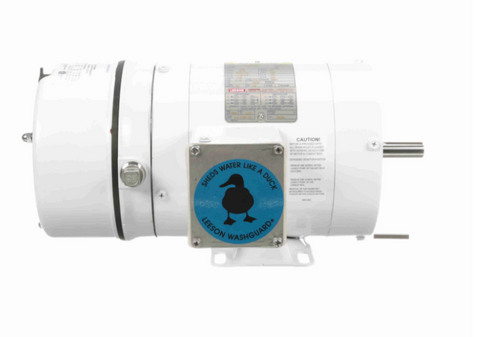

116466.00 Leeson White Duck 1/3 hp 1800 RPM 208-230/460V 3-Phase 56C Frame TENV (base) Brake Motor
(No reviews)
Write a Review
Write a Review
Leeson/Marathon
116466.00 Leeson White Duck 1/3 hp 1800 RPM 208-230/460V 3-Phase 56C Frame TENV (base) Brake Motor
$1,166.45
SKU
116466
UPC
6.92E+11
Shipping
Free Shipping
Voltage
208/230/460V
Horsepower
1/3 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TENV
Hertz
60 Hz
Amperage
1.3/0.65 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
C-Face
- 1/3 hp 1800 RPM, 1.4-1.3/0.65 amps 208-230/460 Volts 60 Hz. Three Phase
- NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,
Brake motor for quick stopping applications. USDA-approved epoxy painted motor for use in food preparation areas. Shaft has keyway. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 116466.00
| Voltage | 208/230/460V |
|---|---|
| Horsepower | 1/3 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 1.3/0.65 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | C-Face |
