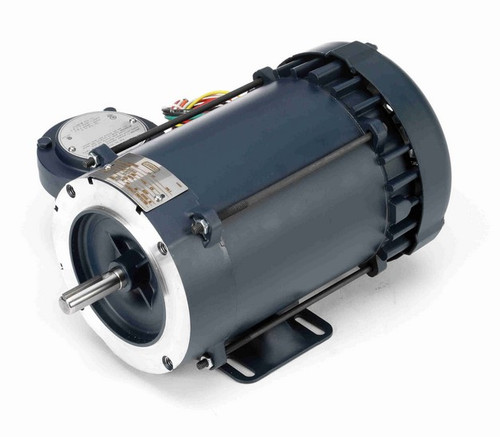

116608.00 Leeson 1/2 hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor

116608.00 Leeson 1/2 hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor

This Leeson explosion-proof motor is designed for hazardous environments requiring reliable, durable power. It is ideal for replacing or upgrading motors in industrial applications where safety and compliance with Class I and II hazardous location standards are critical.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 8.4/4.0-4.2 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings, Class B Insulation

Product Features & Fitment

This capacitor start, single-phase motor features a rigid base and a C-face mount designed for easy installation in explosion-proof applications. It meets explosion-proof standards for Class I Groups C & D and Class II Groups F & G, with a T3C temperature rating. The bolt holes are spaced 3 3/4" on center across the shaft, and a wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
