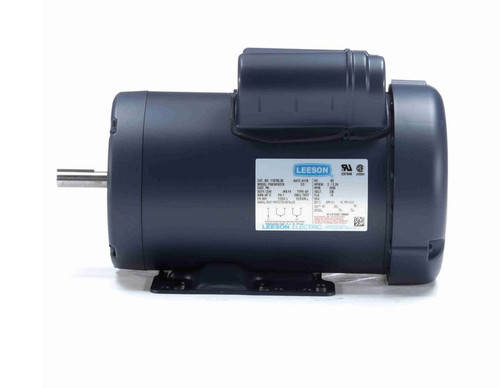

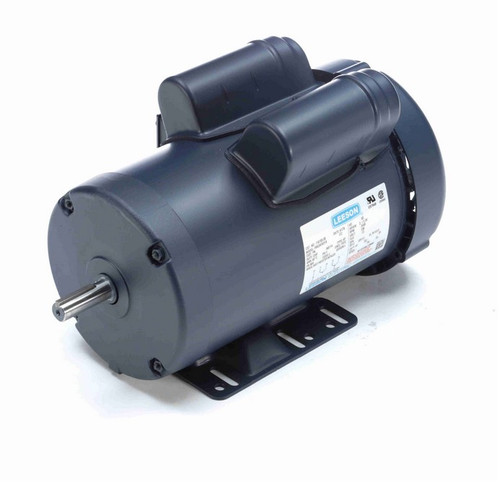

116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor
116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor
116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor
116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor
116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor
116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor

Leeson

116705.00 Leeson 3 hp 3600 RPM 230V 56H Frame TEFC Rigid-Base Motor

(No reviews) Write a Review
$972.90
$824.67
SKU 116705
UPC 6.92E+11
Availability Subject to Availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 3 HP
RPM 3600
Phase Single Phase
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 13.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 13.0 amps 230 Volts 60hz. Single Phase Capacitor Start/Run Motor
  • NEMA 56 Frame Keyed Shaft 7/8" Diameter x 1 7/8"
  • Service Factor: 1.0 - Overload Protection = Manual
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 116705.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 3 HP
RPM 3600
Phase Single Phase
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 13.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
