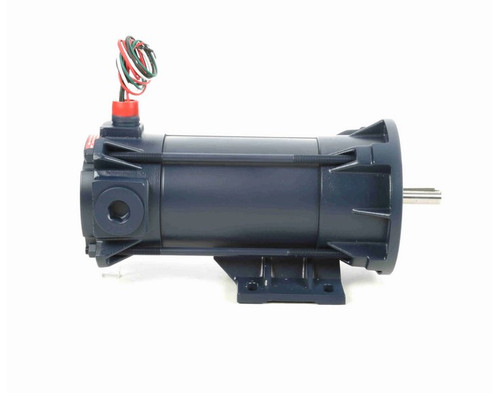

118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor
118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor
118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor
118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor
118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor
118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor

Leeson

118016.00 Leeson 1/2 hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor

(No reviews) Write a Review
$2,567.95
$2,210.30
SKU 118016
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 90V
Horsepower 1/2 HP
RPM 1800
Frame 56C
Enclosure TENV
Amperage 4.7 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class H
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 4.7 amps 90 Volt DC Controllable Motor
  • NEMA 56C Frame, Shaft 5/8" Diameter x 1 7/8
  • Service Factor: 1.0 Overload Protection = Auto
  • Rigid Base, Reversible, Ball Bearings, Class H Insulation
  • 1 Year Manufacture Warranty

Explosion Proof C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Explosion Proof Class 1 Groups C and D, Class II Groups F and G. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. 118016.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 90V
Horsepower 1/2 HP
RPM 1800
Frame 56C
Enclosure TENV
Amperage 4.7 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class H
Mounting Rigid Base
!
