sale
Leeson

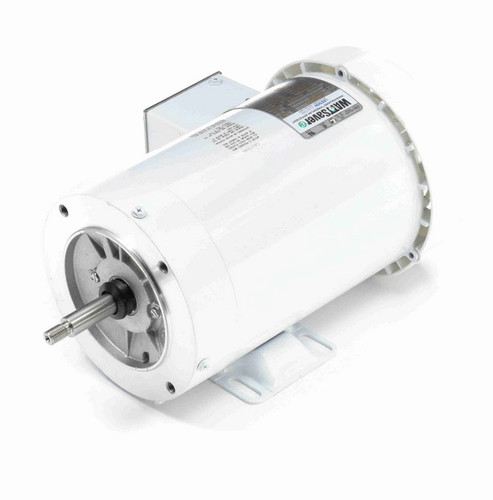

119461.00 Leeson 2 hp 3600 RPM 208-230/460V 56J Frame (Rigid Base) TEFC 3-Phase Wash-Down Jet Pump Motor
(No reviews)
Write a Review
Write a Review
Leeson
119461.00 Leeson 2 hp 3600 RPM 208-230/460V 56J Frame (Rigid Base) TEFC 3-Phase Wash-Down Jet Pump Motor
$991.30
$839.85
SKU
119461
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
2 HP
RPM
3600
Phase
Three Phase
Frame
56J
Enclosure
TEFC
Hertz
60 Hz
Amperage
4.8/2.4 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
119461.00 Leeson 2 hp 3600 RPM 208-230/460V 56J Frame (Rigid Base) TEFC 3-Phase Wash-Down Jet Pump Motor
This Leeson 2 hp, 3-phase jet pump motor is designed for wash-down applications in wet and misty environments. It features a rigid base and C-face mount, making it suitable for replacement or new installations requiring a durable, totally enclosed fan-cooled motor.
Key Specifications
- Horsepower: 2 hp
- RPM: 3600
- Voltage: 208-230/460 V
- Amperage: 5.2-4.8/2.4 A
- Enclosure: TEFC (Totally Enclosed Fan-Cooled)
- Frame / Diameter: NEMA 56J Frame
- Shaft Dimensions: Threaded 5/8" diameter
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor includes a rigid base for stable mounting and features a C-face mount with bolt holes spaced 3 3/4" on center across the shaft. It is equipped with Class F insulation and designed for wash duty jet pump applications. Wiring diagrams are provided on the motor nameplate for ease of installation.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 2 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 56J |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 4.8/2.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
