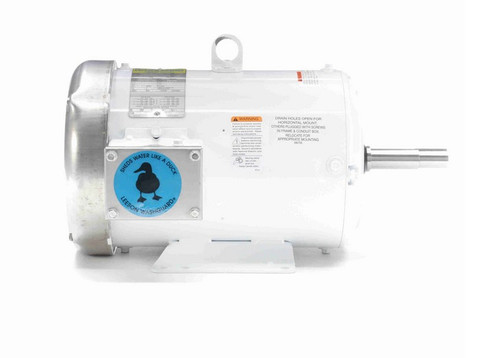

132446.00 Leeson 7 1/2 hp 3600 RPM 208-230/460V 184JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

132446.00 Leeson 7 1/2 hp 3600 RPM 208-230/460V 184JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

This Leeson 7 1/2 horsepower, 3600 RPM wash-down pump motor is designed for wet and misty environments. It replaces standard pump motors and is ideal for close-coupled pump applications requiring a durable, totally enclosed fan-cooled (TEFC) motor.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 19.2-17.6 / 8.8 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 184JM Frame
• Shaft Dimensions: 1 1/8" diameter JM shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base and a C-face mount designed for close-coupled pump installations where the pump head attaches directly to the shaft. Bolt holes are spaced 3 3/4" on center across the shaft. The motor includes Class F insulation and a wiring diagram located on the nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
