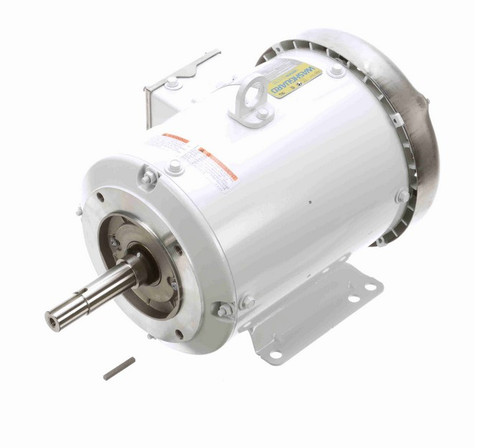

132444.00 Leeson 5 hp 1800 RPM 208-230/460V 184JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

132444.00 Leeson 5 hp 1800 RPM 208-230/460V 184JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

SKU:
132444
Weight:
89.00 LBS
Width:
18.00 (in)
Height:
14.00 (in)
Depth:
13.00 (in)
Shipping:
Calculated at Checkout
Voltage:
208/230/460V
Horsepower:
5 HP
RPM:
1800
Phase:
Three Phase
Frame:
184JM
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
6.3 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $1,691.52
Now: $1,410.48
Adding to cart… The item has been added
  • 5 hp 1800 RPM, 13.8-12.6/ 6.3 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 184JM Frame with JM Shaft 1 1/8" Diameter
  • Service Factor: 1.15, Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Wash Duty JM frame close-coupled pump motor with a C-face mount for use in wet and misty environments in which the pump head is attached directly to the shaft. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132444.00

!
