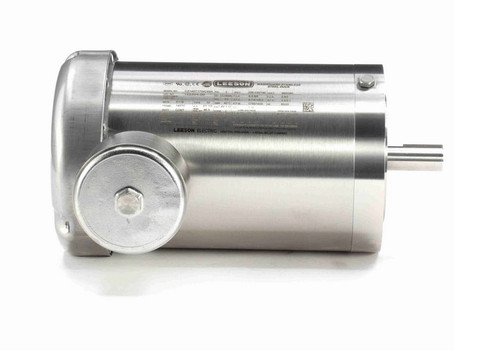

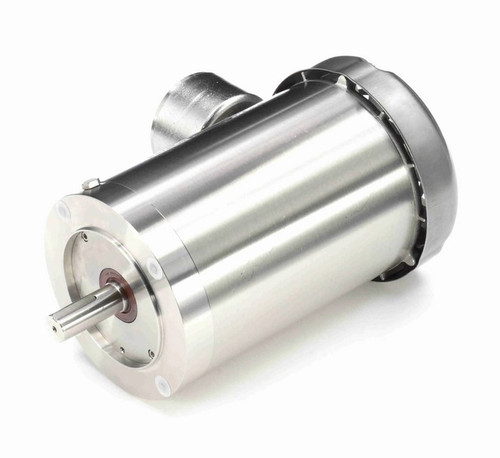

122204.00 Leeson 2 hp 1800 RPM 208-230/460V 145TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor

SKU:
122204
Weight:
52.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $1,645.00
Now: $1,394.10
Adding to cart… The item has been added
  • 2 hp 1800 RPM, 6.0-5.8/2.9 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload Protection = None
  • No Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Premium Stainless Steel Wash Duty motor with a C-face mount for use in wet environments requiring the addition of strong corrosive disinfectants . Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 122204.00
