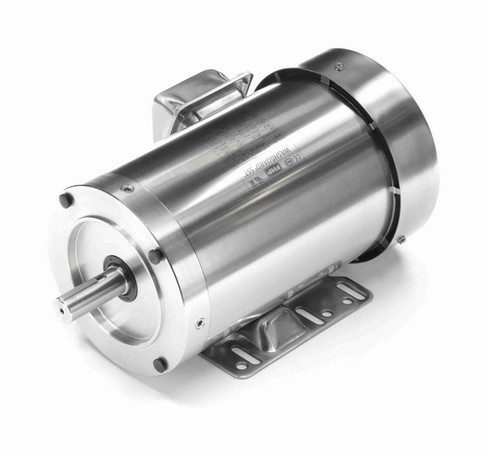

191491.00 Leeson 2 hp 1800 RPM 208-230/460V 145TC Frame (Rigid Base) TEFC 3-Phase All-Stainless Wash-Down Motor

191491.00 Leeson 2 hp 1800 RPM 208-230/460V 145TC Frame (Rigid Base) TEFC 3-Phase All-Stainless Wash-Down Motor

This Leeson 2 hp, 1800 RPM wash-down motor is designed for demanding wet and misty environments. It features a stainless steel construction and a totally enclosed fan-cooled (TEFC) design, making it ideal for industrial applications requiring durability and corrosion resistance.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 5.8-5.4/2.7 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 145TC Frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a rigid base for stable mounting and a C-face mount with bolt holes spaced 3 3/4" on center across the shaft. It is equipped with Class F insulation and a service factor of 1.15. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
