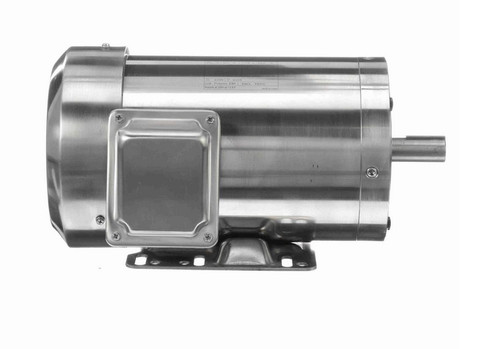

191528.00 Leeson 1 hp 1200 RPM 208-230/460V 145TC Frame (Rigid Base) TEFC 3-Phase All-Stainless Wash-Down Motor

191528.00 Leeson 1 hp 1200 RPM 208-230/460V 145TC Frame (Rigid Base) TEFC 3-Phase All-Stainless Wash-Down Motor

This Leeson 1 hp, 3-phase motor is designed for wash-down and wet environment applications, featuring an all-stainless steel construction for enhanced corrosion resistance. It is ideal for replacing motors in food processing, chemical, and other wash-down duty settings requiring a durable, totally enclosed fan-cooled motor.

Key Specifications

• Horsepower: 1 hp
• RPM: 1200
• Voltage: 208-230/460 V
• Amperage: 3.8-3.8/1.9 A
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mount with bolt holes spaced 3 3/4" on center across the shaft, facilitating straightforward installation. It includes a C-face mount suitable for wet and misty environments, and the wiring diagram is provided on the motor nameplate for ease of connection. Class F insulation ensures reliable operation under demanding conditions.

Warranty

1 Year Manufacturer Warranty
