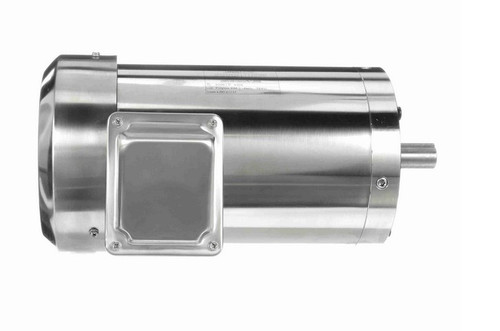

191542.00 Leeson 3 hp 3600 RPM 208-230/460V 145TC Frame (No Base) TEFC 3-Phase All-Stainless Wash-Down Motor
(No reviews)
Write a Review
Write a Review
Leeson
191542.00 Leeson 3 hp 3600 RPM 208-230/460V 145TC Frame (No Base) TEFC 3-Phase All-Stainless Wash-Down Motor
$1,588.15
$1,346.31
SKU
191542
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
3 HP
RPM
3600
Phase
Three Phase
Frame
145TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
7.2/3.6 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
C-Face
- 3 hp 3600 RPM, 8.0-7.2/3.6 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4
- Service Factor: 1.15, Overload Protection = None
- No Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 191542.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 145TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 7.2/3.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | C-Face |
