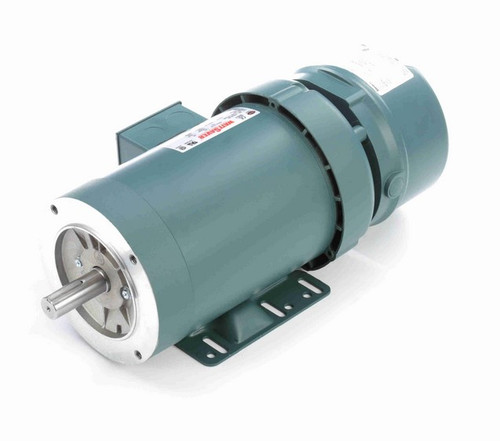

122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor
122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor
122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor
122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor
122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor
122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor

Leeson

122248.00 Leeson 1 hp 1800 RPM 230/460V 143TC Frame (Rigid Base) TEFC 3-Phase Brake Motor

(No reviews) Write a Review
$1,544.45
$1,308.70
SKU 122248
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143TC
Enclosure TEFC
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 3.2/1.6 amps 230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 143TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload Protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Brake motor with a C-face mount with brake engaged when motor powered off. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. 122248.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143TC
Enclosure TEFC
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
