HD125P2F Nidec | 125 hp 1800 RPM 444T Frame 460V TEFC Nidec Electric Motor

HD125P2F Nidec | 125 hp 1800 RPM 444T Frame 460V TEFC Nidec Electric Motor

The HD125P2F is a premium efficiency, totally enclosed fan-cooled (TEFC) electric motor designed for industrial applications requiring reliable, continuous duty performance. It is suitable for replacing motors in hostile environments such as mills and chemical plants, offering corrosion resistance and inverter compatibility.

Key Specifications

• Horsepower: 125 hp
• RPM: 1800
• Voltage: 460 V
• Amperage: 141.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

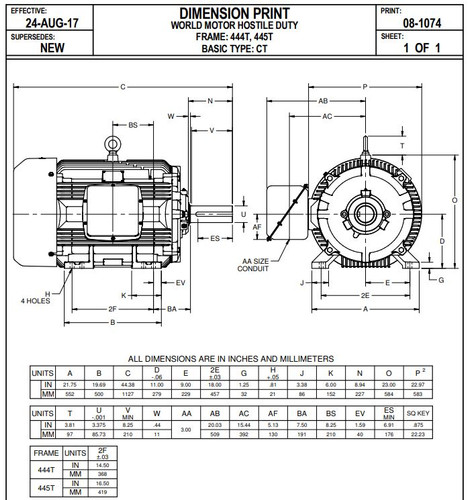

• Frame / Diameter: NEMA 444T Frame / 44.4" "C" Dimension
• Shaft Dimensions: Keyed shaft, 3 3/8" diameter x 8 1/2" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a corrosion-resistant cast iron frame, chemical duty paint, and stainless steel nameplate with CE marking. It includes a steel fan cover, conduit box, and condensation drains with plastic plugs. The motor supports 20:1 variable torque and 5:1 constant torque when used with inverter power, making it suitable for demanding industrial variable-speed applications. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
