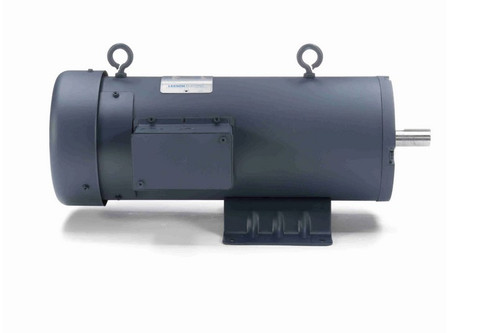

128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor
128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor
128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor
128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor
128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor
128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor

Leeson

128001.00 Leeson 2 hp 1800 RPM 180VDC 182TC Frame (Rigid Base) TEFC Controllable DC Motor

(No reviews) Write a Review
$2,642.70
$2,059.08
SKU 128001.00
UPC 6.92E+11
Availability Subject to Factory Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 180V
Horsepower 2 HP
RPM 1800
Frame 182TC
Enclosure TEFC
Amperage 9.5 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class H
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 1800 RPM, 9.5 amps 180 Volt DC Controlled Motor
  • NEMA 182TC Frame, Shaft 7/8" Diameter x 2 1/8
  • Service Factor: 1.0 Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings, Class H Insulation
  • 1 Year Manufacture Warranty

C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) and PWM (Pulse Width Modulation) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled.

Replaces Marathon Z617, 182TEFR5326

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 180V
Horsepower 2 HP
RPM 1800
Frame 182TC
Enclosure TEFC
Amperage 9.5 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class H
Mounting Rigid Base
!
