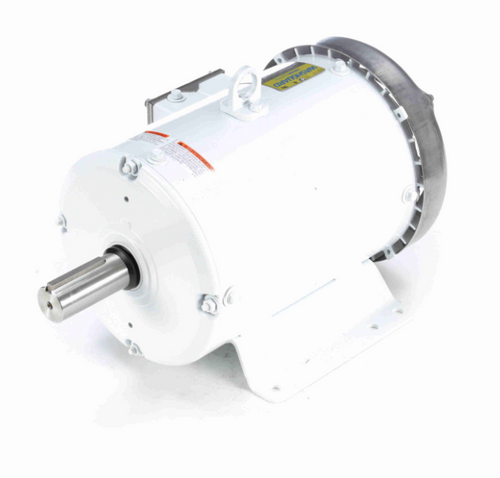

132204.00 Leeson White Duck 7 1/2 hp 3600 RPM 230/460V 3-Phase S213T Frame TEFC (base) Motor

SKU:
132204.00
Weight:
87.00 LBS
Shipping:
Calculated at Checkout
$1,586.37
Adding to cart… The item has been added
  • 7 1/2 hp 3600 RPM, 17.6/8.8 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA S213T frame, C-face, Stainless Steel Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty,

USDA-approved epoxy painted motor for use in food preparation areas. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132204.00
