132646.00 Leeson Extreme Duck 3 hp 3600 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor

(No reviews) Write a Review
$2,394.94
SKU 132646
UPC 7.23E+11
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 7.6/3.8 amps 230/460 Volts 60 Hz. Three Phase

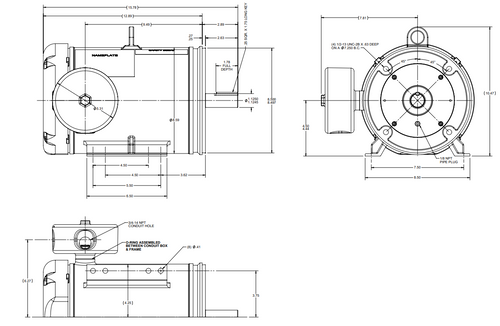

  • NEMA 184TC frame, C-face, Stainless Steel Keyed Shaft 1 1/8" Diameter x 2 5/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132646.00

Specifications
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
