132647.00 Leeson Extreme Duck 3 hp 1800 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor

SKU:
132647.00
Weight:
133.00 LBS
Shipping:
Calculated at Checkout
Was: $2,303.00
Now: $1,795.20
Adding to cart… The item has been added
  • 3 hp 1800 RPM, 7.8/3.9 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 184TC frame, C-face, Stainless Steel Keyed Shaft 1 1/8" Diameter x 2 5/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty,

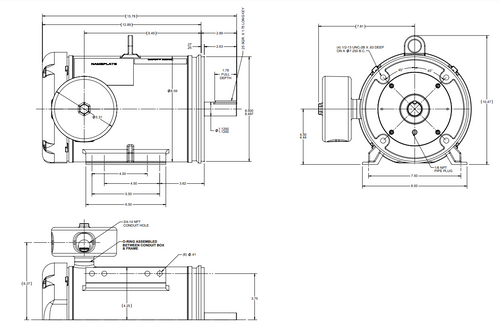

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132647.00
