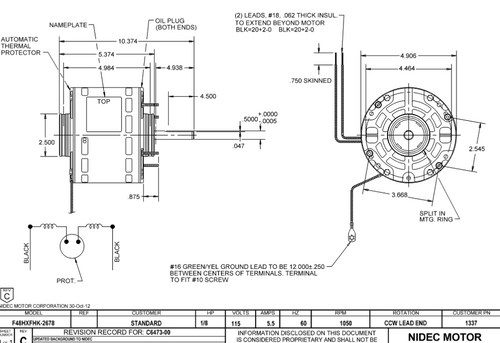

1337 Nidec 1/8 hp 1050 RPM 115V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor

1337 Nidec 1/8 hp 1050 RPM 115V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor

This Nidec 1/8 hp fan motor is designed for direct drive applications in central HVAC systems. It serves as a reliable replacement motor featuring a single-speed operation and an open air over (OAO) enclosure.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 1050
• Voltage: 115V
• Amperage: 5.5 amps
• Enclosure: Open Air Over (OAO)
• Frame / Diameter: 5.0" diameter rolled steel frame
• Shaft Dimensions: 1/2" diameter x 5" length, flat shaft
• Rotation: Counterclockwise (CCW) lead end
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a stud mount design for straightforward installation and includes overload protection with an automatic reset. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
