1365 Nidec 1/15 hp 1075 RPM 277V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor
1365 Nidec 1/15 hp 1075 RPM 277V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor
1365 Nidec 1/15 hp 1075 RPM 277V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor
1365 Nidec 1/15 hp 1075 RPM 277V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor

Nidec

1365 Nidec 1/15 hp 1075 RPM 277V 5.0" Dia. (No Base) 1-Speed OAO Fan Motor

(No reviews) Write a Review
$264.50
$235.98
SKU 1365
Availability Subject to Availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 277V
Horsepower 1/15 HP
RPM 1075
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.42 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Insulation Class Class B
Adding to cart… The item has been added
Description

    1/5 hp 1075 RPM, 0.42 amps 277V Volts 60 Hz PSC Motor
    5.0" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 7"
    Service Factor = 1, Overload Protection: Auto
    Bracket Mount, Sleeve Bearings, Class B Insulation, CCW Lead End
    1 Year Manufacture Warranty

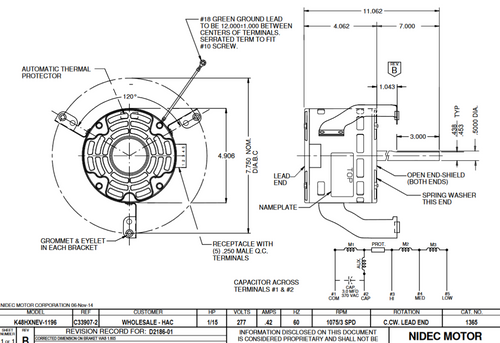

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over,  K048NEV1196011B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 277V
Horsepower 1/15 HP
RPM 1075
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.42 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Insulation Class Class B
!
