1385 Nidec 1/6 hp 1625 RPM 230V 5.6" Dia. (Base) 1-Speed TEAO Unit Heater Motor
1385 Nidec 1/6 hp 1625 RPM 230V 5.6" Dia. (Base) 1-Speed TEAO Unit Heater Motor
1385 Nidec 1/6 hp 1625 RPM 230V 5.6" Dia. (Base) 1-Speed TEAO Unit Heater Motor
1385 Nidec 1/6 hp 1625 RPM 230V 5.6" Dia. (Base) 1-Speed TEAO Unit Heater Motor

Nidec

1385 Nidec 1/6 hp 1625 RPM 230V 5.6" Dia. (Base) 1-Speed TEAO Unit Heater Motor

(No reviews) Write a Review
$354.20
$316.60
SKU 1385
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/6 HP
RPM 1625
Enclosure TEAO
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 2.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/6 hp 1625 RPM (1 speed), 2.5 amps 230V Volts 60 Hz PSC Motor
  • 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 3"
  • Service Factor = 1, Overload Protection: Auto
  • Resilient Base Mount, Ball Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

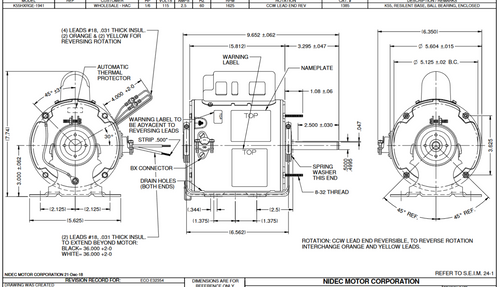

DUnit heater motor. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air-Over, K055RGE1941015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/6 HP
RPM 1625
Enclosure TEAO
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 2.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
!
