8069 Nidec 1 hp 1080 RPM 230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
8069 Nidec 1 hp 1080 RPM 230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
8069 Nidec 1 hp 1080 RPM 230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
8069 Nidec 1 hp 1080 RPM 230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

Nidec

8069 Nidec 1 hp 1080 RPM 230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

(No reviews) Write a Review
$721.05
$643.77
SKU 8069
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1 HP
RPM 1080
Enclosure TEAO
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 4.9 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
Adding to cart… The item has been added
Description
  • 1 hp 1080 RPM, 4.9 amps 230V Volts 60 Hz PSC Motor
  • NEMA 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 4 7/8"
  • Service Factor = 1, Overload Protection: Auto
  • Stud Mount, Ball Bearings, Class B Insulation, CCW lead end
  • 1 Year Manufacture Warranty

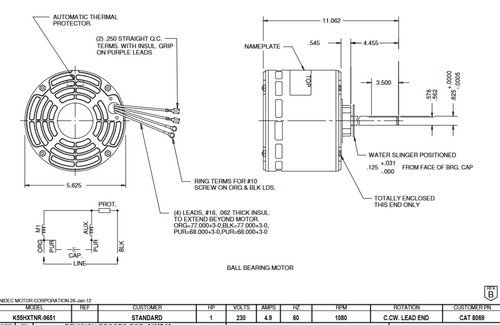

Replacement Condenser Fan Motor for certain brands. Wiring diagram on motor name plate. TEAO = Open Drip Proof, K055TNR9651011B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1 HP
RPM 1080
Enclosure TEAO
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 4.9 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
!
