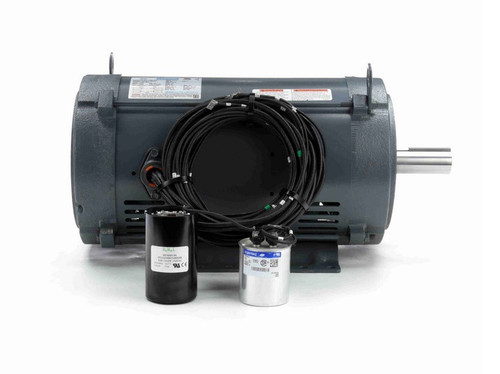

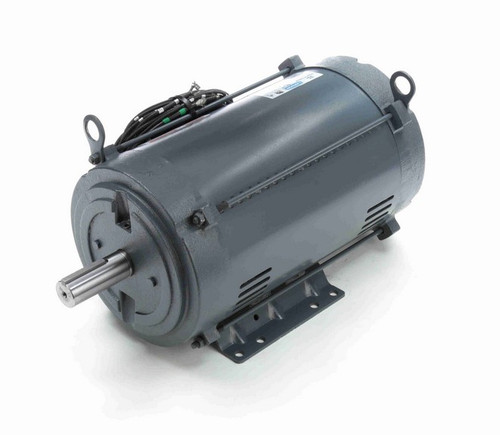

140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor
140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor
140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor
140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor
140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor
140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor

Leeson

140816.00 Leeson 10 hp 1800 RPM 230V 215TVZ Frame (Rigid Base) DPAO 1-Phase Tobacco Barn Motor

(No reviews) Write a Review
$1,926.25
$1,499.95
SKU 140816.00
Availability Subject to Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230V
Horsepower 10 HP
RPM 1800
Phase Single Phase
Frame 215TVZ
Hertz 60 Hz
Amperage 44.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class H
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 10 hp 1800 RPM, 44.0 amps 230 Volts 60 Hz. Capacitor Start/Run 1-Phase Motor
  • NEMA 215TVZ Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings - Class H Insulation
  • 1 Year Manufacture Warranty

Fan motor designed for very high ambient temperature (80C) applications where motor is in air-stream. Wiring diagram on motor name plate. DPAO = Drip-Proof Air-Over. 140816.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230V
Horsepower 10 HP
RPM 1800
Phase Single Phase
Frame 215TVZ
Hertz 60 Hz
Amperage 44.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class H
Mounting Rigid Base
!
