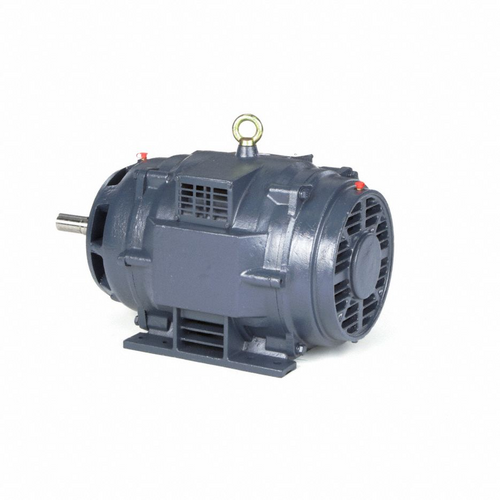

- 15 hp 1740 RPM 254JM Frame, 36.5/18.3 amps 230/460V 60hz. Three Phase Motor
- Close Coupled Pump Motor - Rigid Base
- Open Drip Proof (ODP) - Service Factor = 1.15
- Class F Insulation, No Overload Protection
- Continuous duty
- One Year Manufacture Warranty
Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.
254TTDBD6032; Replaces Leeson Model 199964.00, 199964, B199964.00, B199964; Dayton 26ZY10
