GT0059 Marathon 15 hp 1800 RPM 254T Frame 230/460V Open Drip Marathon Electric Motor

GT0059 Marathon 15 hp 1800 RPM 254T Frame 230/460V Open Drip Marathon Electric Motor

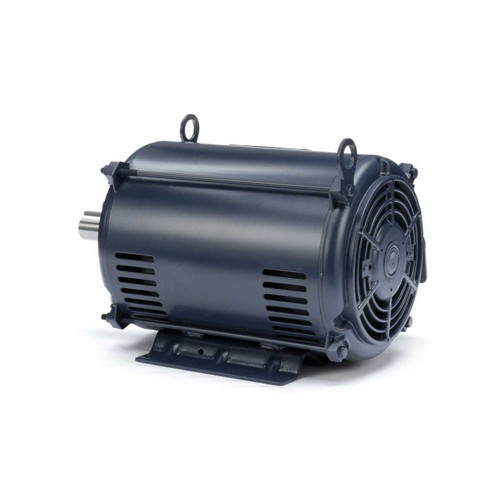

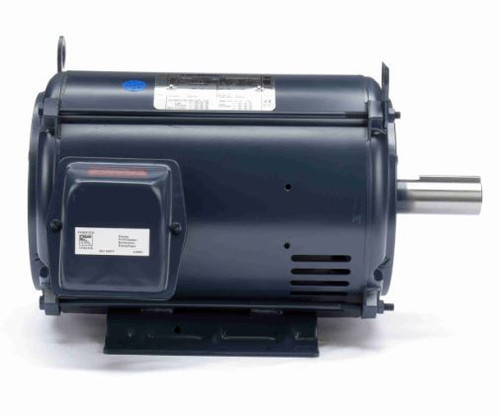

This Marathon 15 hp, 1800 RPM three-phase electric motor is designed for general-purpose industrial applications. It replaces Leeson models 170065.60, B199699.00, and 199699.00, providing reliable performance in various machinery requiring a robust motor solution.

Key Specifications

• Horsepower: 15 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 36.5/18.3 A
• Enclosure: Open Drip Proof (ODP)

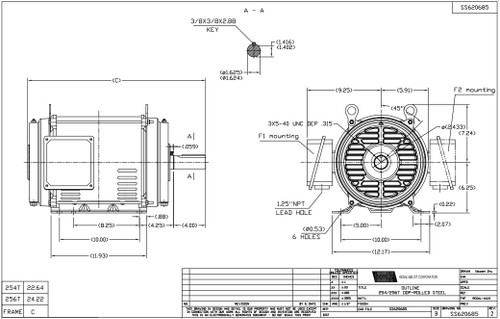

• Frame / Diameter: NEMA 254T Frame
• Shaft Dimensions: 1 5/8" Diameter x 4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a keyed shaft for secure installation. It is constructed with rolled steel and insulated with Class F materials to ensure durability and thermal protection. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.

Cross Reference

• Leeson 170065.60, B199699.00, 199699.00

Warranty

1 Year Manufacturer Warranty
