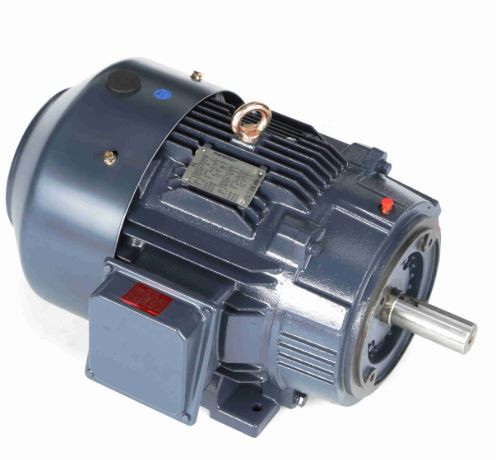

GT1222A Marathon 15 hp 1800 RPM 254TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

GT1222A Marathon 15 hp 1800 RPM 254TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

SKU:
GT1222A
Availability:
Subject to Availability
Weight:
311.00 LBS
Width:
36.00 (in)
Height:
25.00 (in)
Depth:
19.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
15 HP
RPM:
1800
Phase:
Three Phase
Frame:
254TC
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
37.5/18.8 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
C-Face
Was: $4,451.65
Now: $1,521.45
Adding to cart… The item has been added
  • 15 hp 1800 RPM, 37.5/18.8 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 254TC Frame Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

254TTFCD6028 Replaces Leeson C254T17FK8A, 171587.00

!
