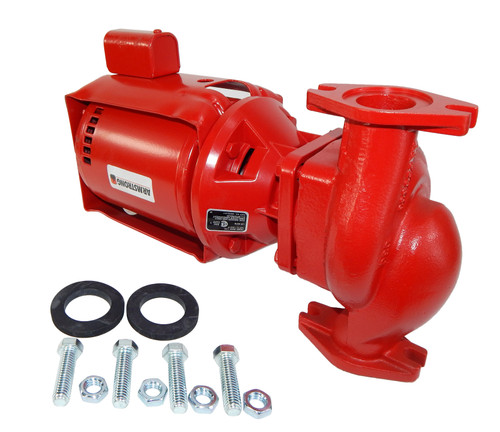

S-46 MF/BF Armstrong In-Line Circulator
- 1/3 HP, 1725 RPM, 115 Volts, 60HZ
- 3" Round Flanges
- No Oiling, Maintenance-free design uses permanently lubricated ball bearings
- Impeller Material: Non-ferrous
- Stainless Steel Shaft
- Standard Three-Piece Design; Cast Iron
- Includes Hardware Kit - Mounting Bolts and (2) Rubber Flange Gaskets
- Threaded Flange Not Included - Sold Separately
- 1 Year Manufacture Warranty
- NOT FOR USE IN POTABLE WATER SYSTEMS
Has not been designed to be compliant with the “Safe Drinking Water Act” - All circulators are to be mounted with motor and pump in horizontal position
This Armstrong pump is equipped with permanent lubricated ball bearings, ensuring superior performance when compared to the Bell & Gossett pump which requires regular oiling and maintenance.
Armstrong Series S & H in-line circulators are ideal for applications such as hydronic heating and cooling, domestic water systems, multi-stage zoning and general industrial service. Armstrong 3-piece circulators use a proven design that continues to evolve. The expanded temperature range makes them suitable for more applications, and the industry-accepted flange configuration makes s&h circulators a perfect solution when you need to change out pumps quickly without the need for pipe modifications.
Replacement for the following models:
Bell & Gossett Series HD3, 102226
Armstrong Previous Models 174037-013
Grainger 4RD02
Replacement Parts:
816027MF-002 • Bearing Assembly
816305-325 • 4-1/4" Impeller
806168-001 • Spring Coupler
CP-R1356 • New 1/3HP Electric Motor
