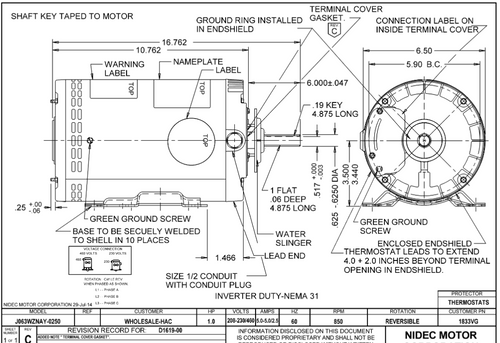

1833VG Nidec 1 hp 850 RPM 208-230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor

1833VG Nidec 1 hp 850 RPM 208-230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor

This Nidec 1 hp, 850 RPM motor is designed for commercial condenser fan applications utilizing a variable frequency drive. It serves as a reliable replacement motor with a rigid base mount and open air-over enclosure, suitable for 3-phase power systems.

Key Specifications

• Horsepower: 1 hp
• RPM: 850
• Voltage: 208-230/460V
• Amperage: 5.0-5.0/2.5 amps
• Enclosure: Open Air-Over (OAO)
• Frame / Diameter: NEMA 56YZ Frame
• Shaft Dimensions: 5/8" diameter x 4 7/8" long
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rolled steel construction with a flat shaft and a rigid base mount for stable installation. It includes a thermostat for overload protection and Class F insulation for enhanced durability. Wiring diagrams are provided on the motor nameplate to assist with proper connection during installation.

Warranty

1 Year Manufacturer Warranty
