1820VG Nidec 1 hp 1140 RPM 208-230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor

1820VG Nidec 1 hp 1140 RPM 208-230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor

SKU:
1820VG
Weight:
38.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $589.00
Now: $525.80
Adding to cart… The item has been added
  • 1 hp 1140 RPM, 4.3-4.3/2.1 amps 208-230/460V Volts 60 Hz 3-Phase Motor
  • NEMA 56YZ Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 4 7/8" long
  • Service Factor = 1.0, Overload Protection: Thermostat
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Rev
  • 1 Year Manufacture Warranty

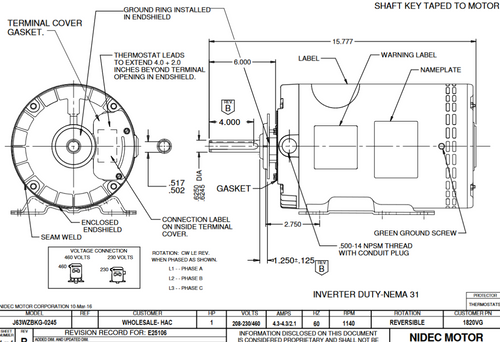

Commercial Condenser Fan Motor for applications using a variable frequency drive. Wiring diagram on motor name plate. OAO = Open Air-Over, J063BKG0245015B

!
