1819VG Nidec 1 1/2 hp 1140 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor

1819VG Nidec 1 1/2 hp 1140 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor

This Nidec 1 1/2 horsepower motor is designed for commercial condenser fan applications utilizing variable frequency drives. It serves as a reliable replacement motor featuring a robust 56YZ frame and open air-over (OAO) enclosure for efficient cooling.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1140
• Voltage: 208-230/460V
• Amperage: 5.3-5.3/2.6 amps
• Enclosure: Open Air-Over (OAO)
• Frame / Diameter: NEMA 56YZ, Rolled Steel
• Shaft Dimensions: 5/8" diameter x 4 7/8" long, flat and keyed
• Bearings: Ball Bearings
• Rotation: Reversible

Product Features & Fitment

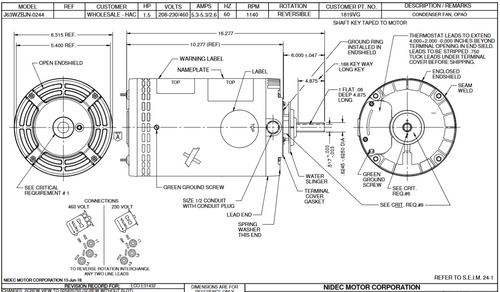

This motor includes a band mount and is equipped with Class F insulation and a thermostat for overload protection. It is designed for 3-phase, 60 Hz operation and features a wiring diagram on the motor nameplate to assist with installation. The motor is supplied without a base, facilitating flexible mounting options.

Warranty

1 Year Manufacturer Warranty
