- 15 hp 1800 RPM, 38.0-35.5/17.8 amps 208-230/460 Volts 60 Hz. Three Phase
- NEMA 254TC frame, C-face, Stainless Steel Keyed Shaft 1 5/8" Diameter x 4"
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,

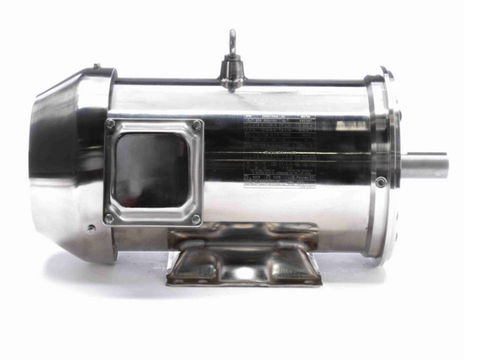

Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 194009.00
