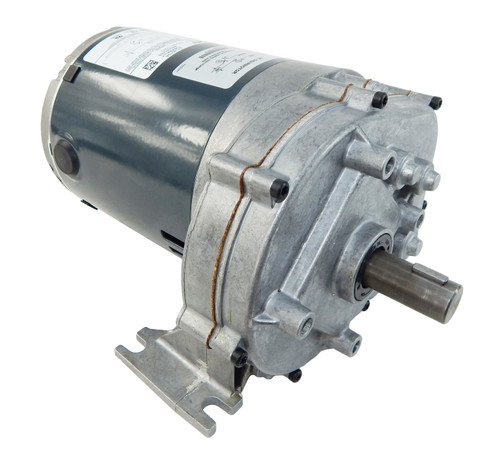

1LPP2 Dayton Direct Interchange 1/4 hp 60 RPM 115V Bison AC Parallel Shaft Gear Motor • Model 014Q307-0029

1LPP2 Dayton Direct Interchange 1/4 hp 60 RPM 115V Bison AC Parallel Shaft Gear Motor

This Bison AC Parallel Shaft Gear Motor (Model 014Q307-0029) is a direct OEM replacement for Dayton models 1LPP2, 1LPP2A, 5K940, and Von Wiese V00323AB20. Designed for industrial applications requiring reliable, low-speed power transmission, it delivers consistent performance with reversible rotation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 60
• Voltage: 115V
• Amperage: 3.9 amps
• Rotation: Reversible
• Shaft Dimensions: 3/4" Diameter x 1-1/2" Length

Product Features & Fitment

The motor features a woodruff keyed shaft and four non-threaded bolt holes on the face, which can be tapped for 3/8" bolts (stainless steel bolts are not recommended). It supports a load torque of 200 inch-pounds and an overhung load capacity of 190 pounds, indicating the maximum weight that can be suspended from the shaft without causing internal damage. Note that this motor is not suitable for speed control.

Cross Reference

• Dayton 1LPP2, 1LPP2A, 5K940
• Von Wiese V00323AB20

Warranty

1 Year Manufacturer Warranty
