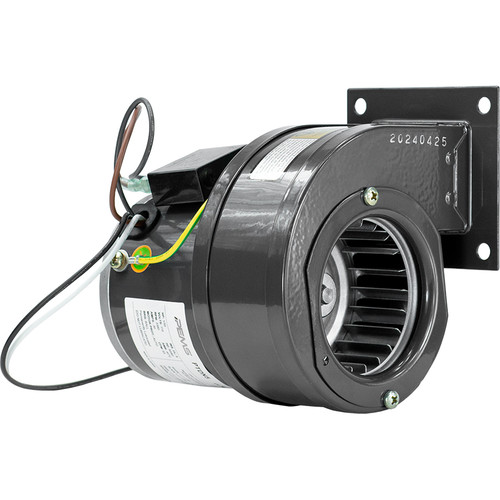

1TDN5, 4C012 Dayton Direct OEM Interchange Replacement Blower

1TDN5, 4C012 Dayton Direct OEM Interchange Replacement Blower

This replacement blower is designed as a direct OEM aftermarket substitute for the discontinued Dayton 1TDN5 and 4C012 models. It is suitable for various indoor and outdoor wood stoves, boilers, fireplaces, and similar applications requiring reliable airflow.

Key Specifications

• RPM: 3388
• Voltage: 115 Volts, 60/50 Hz
• Amperage: 0.30 Amps
• Rotation: Non-reversible
• Bearings: Ball Bearings

Product Features & Fitment

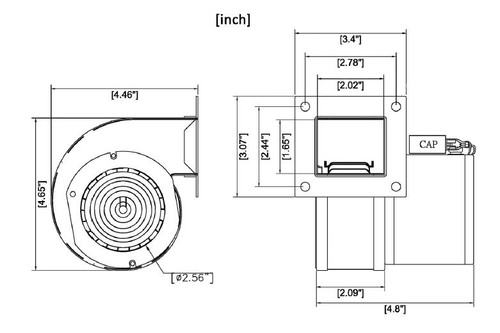

Constructed with a painted steel housing and Class B insulation, this blower includes a conduit box and features automatic overload protection. It mounts in all positions and has an outlet flange bolt hole dimension of 1.65" x 2.78". The blower is not recommended for speed control and does not include a power cord or on/off switch. Installation should be performed by a certified technician with power turned off prior to replacement.

Cross Reference

• the following models
• Dayton Model 4C012 is discontinued - the PTDN5 blower is the direct replacement
• Fasco Model 7021-3486

Warranty

1 Year Manufacturer Warranty
