1TDP5, 1TDP5A, 4C442 Dayton Direct OEM Interchange Replacement Blower

1TDP5, 1TDP5A, 4C442 Dayton Direct OEM Interchange Replacement Blower

This replacement blower is designed as a direct OEM aftermarket substitute for Dayton models 1TDP5, 1TDP5A, and 4C442, commonly used in pellet stoves, wood stoves, fireplaces, furnaces, and HVAC systems for air circulation, ventilation, and discharging.

Key Specifications

• RPM: 2880
• Voltage: 115 Volts 60/50Hz
• Amperage: 0.65 Amps
• Rotation: Non-reversible
• Bearings: Ball Bearings
• Max Airflow: 131 CFM
• Max Inlet Temperature: 104°F

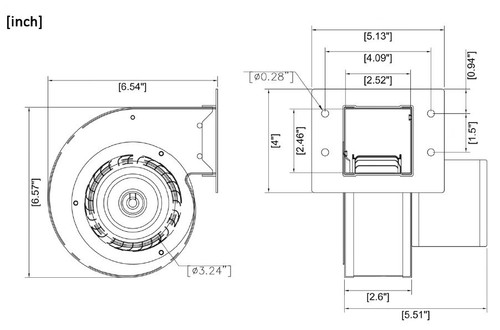

• Outlet Flange Bolt Hole Dimension: 1.5" x 4.09"
• Insulation Class: B
• Motor Type: PSC

Product Features & Fitment

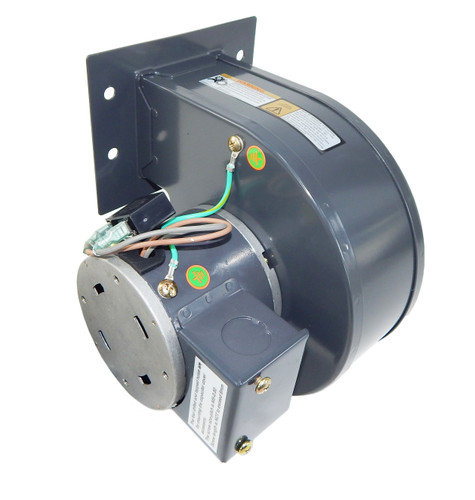

This blower features a painted steel housing and includes a conduit box for easy electrical connection. It is designed for all-position mounting and incorporates automatic overload protection. The blower does not include a power cord or on/off switch and is not recommended for speed control applications. It is a direct replacement for the discontinued Dayton 4C442 and compatible with Fasco equivalents 50752-D500 and 7021-3467. Installation should be performed by a certified technician with power turned off prior to replacement.

Cross Reference

• Dayton 2C610, 4C442, 1TDP5A

Warranty

1 Year Manufacturer Warranty
