1TDR4, 4C869 Dayton Direct OEM Interchange Replacement Blower

1TDR4, 4C869 Dayton Direct OEM Interchange Replacement Blower

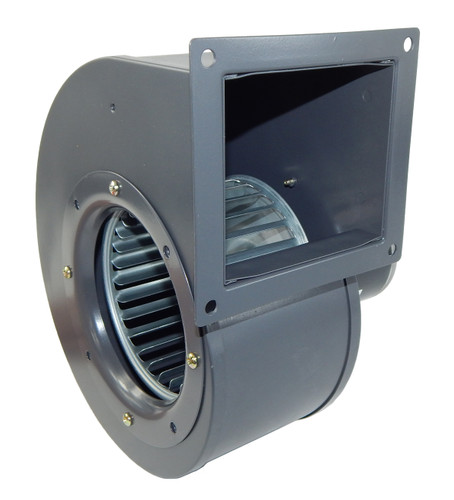

This replacement blower is designed as a direct OEM aftermarket substitute for the discontinued Dayton 1TDR4 and 4C869 models. It is ideal for use in various woodstoves, fireplaces, and boilers requiring reliable airflow performance.

Key Specifications

• RPM: 1670
• Voltage: 230 Volts (60/50 Hz)
• Amperage: 0.43 Amps
• Bearings: Ball Bearings

Product Features & Fitment

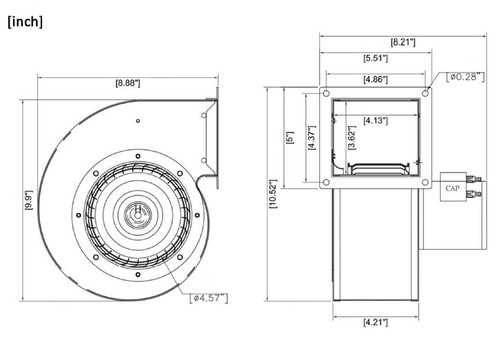

Constructed with a painted steel housing and Class B insulation, this PSC motor blower includes a conduit box for easy electrical connection. It features automatic overload protection and is designed for all-position mounting with a non-reversible rotation. The blower does not include a power cord or on/off switch and is not recommended for speed control applications. Outlet flange bolt hole dimensions measure 4-7/8" x 4-3/8". This unit is cULus approved and made to precisely fit top brand Dayton models as a direct replacement. Installation should be performed by a certified technician with power disconnected prior to servicing.

Cross Reference

• Dayton Model 4C869 is discontinued - the PTDR4 blower is the direct replacement

Warranty

1 Year Manufacturer Warranty
