HD2P3E Nidec | 2 hp 1200 RPM 184T Frame 230/460V TEFC Nidec Electric Motor

HD2P3E Nidec | 2 hp 1200 RPM 184T Frame 230/460V TEFC Nidec Electric Motor

The HD2P3E is a premium efficiency, 2 horsepower electric motor designed for industrial applications requiring reliable, continuous duty performance. It replaces model H2P3D and is suitable for variable and constant torque loads, making it ideal for hostile mill and chemical duty environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1200
• Voltage: 230/460V Three Phase
• Amperage: 6.2/3.1 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

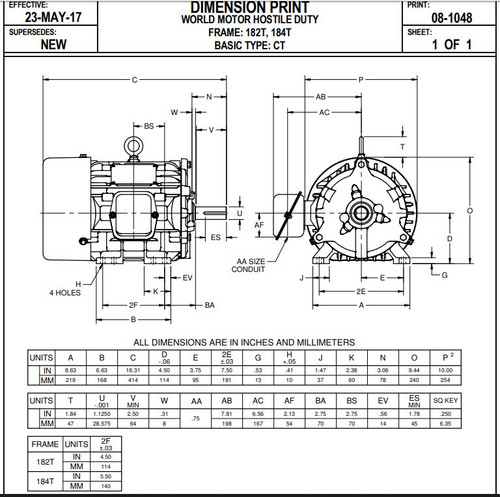

• Frame / Diameter: NEMA 184T
• Shaft Dimensions: Keyed shaft 1-1/8" diameter x 2-3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and a cast iron frame with corrosion-resistant mill and chemical duty paint. It includes a stainless steel nameplate with CE mark, zinc-plated hardware, steel fan cover, conduit box, and condensation drains with plastic plugs. Designed for 40°C ambient temperature, it supports 20:1 variable torque and 5:1 constant torque when used with inverter power. Wiring diagrams are provided on the motor nameplate for easy installation.

Cross Reference

• H2P3D

Warranty

1 Year Manufacturer Warranty
