The HD5P1E is a premium efficient, 5 horsepower electric motor designed for industrial applications requiring a 3600 RPM speed. It features a cast iron frame and is suitable for variable and constant torque loads, replacing model H5P1D.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 12.3/6.1 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

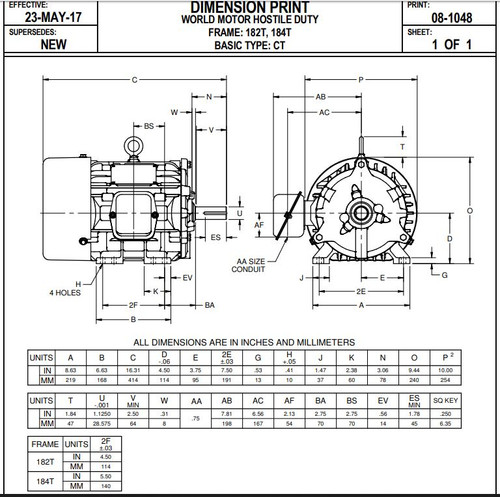

• Frame / Diameter: NEMA 184T
• Shaft Dimensions: 1-1/8" diameter x 2-3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor is designed with a rigid base mount and a keyed shaft for secure installation. It includes corrosion-resistant mill and chemical duty paint, a stainless steel nameplate with CE marking, zinc-plated hardware, steel fan cover, and conduit box. Condensation drains with plastic plugs are incorporated for enhanced durability. Suitable for continuous duty at 40°C ambient temperature, it supports 20:1 variable torque and 5:1 constant torque when used with inverter power. Wiring diagrams are provided on the motor nameplate for ease of installation.

Cross Reference

• H5P1D

Warranty

1 Year Manufacturer Warranty
