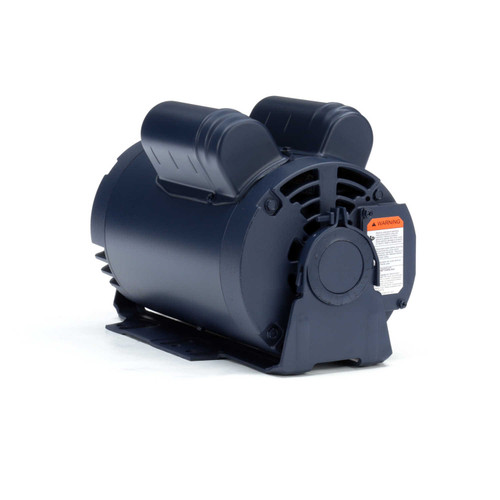

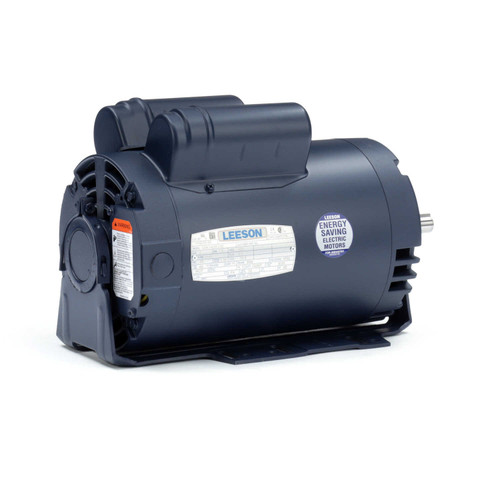

114233.00 Leeson | 2 hp 1440 RPM 56H Frame ODP 220V 50hz.Resilient Base
(No reviews)
Write a Review
Write a Review
Leeson
114233.00 Leeson | 2 hp 1440 RPM 56H Frame ODP 220V 50hz.Resilient Base
$1,099.40
$932.08
SKU
114233
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
220V
Horsepower
2 HP
RPM
1440
Frame
56H
Enclosure
ODP
Hertz
50 Hz
Amperage
9.6 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
- 2 hp 1440 RPM, 9.6 amps, 220V 50 hz. (will not operate @ 60hz)
- NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Resilient Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
This motor is rated for 50 hz. Power systems and will not operate on 60 hz. Operation on 60 hz. Will damage the motor.
C6K14DR13D, 114233.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 220V |
| Horsepower | 2 HP |
| RPM | 1440 |
| Frame | 56H |
| Enclosure | ODP |
| Hertz | 50 Hz |
| Amperage | 9.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
