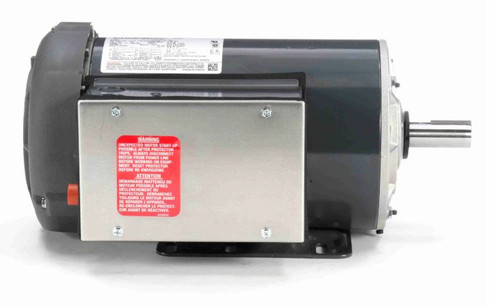

Z128 Marathon 2 hp 1725 RPM 145T Frame TEFC (Farm Duty)115/230V Marathon Electric Motor

Z128 Marathon 2 hp 1725 RPM 145T Frame TEFC (Farm Duty) 115/230V Marathon Electric Motor

The Z128 Marathon electric motor is a 2 horsepower, 1725 RPM motor designed for farm duty applications. It serves as a reliable replacement motor featuring a capacitor start design for high starting torque and is suitable for use in demanding environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1725
• Voltage: 115/230V, 60 Hz
• Amperage: 18.8/9.4 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 145T Frame
• Shaft Dimensions: 7/8" diameter x 2-1/4" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This motor features a flat rigid base mount for straightforward installation and includes condensate drains and a shaft slinger to protect against contaminants. It is constructed with a totally enclosed and fully gasketed housing, making it suitable for dirty environments. The motor also includes a low temperature manual reset thermal protector and manual overload protection with a service factor of 1.15.

Warranty

1 Year Manufacturer Warranty
