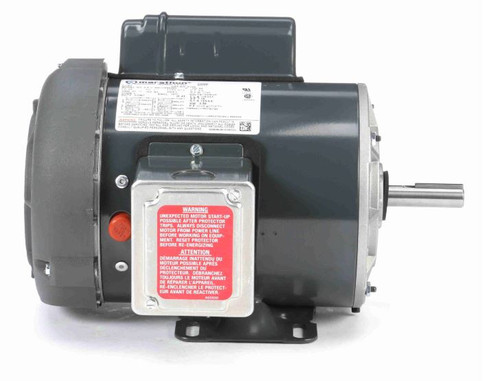

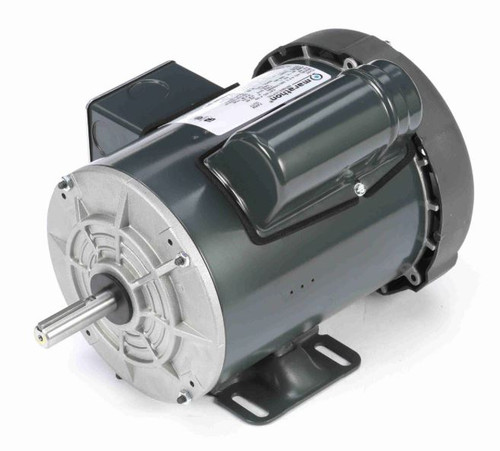

F103 Marathon 3/4 hp 1725 RPM 56 Frame TEFC (Farm Duty) Electric Motor

This Marathon electric motor is a 3/4 horsepower, 1725 RPM unit designed for farm duty applications. It serves as a reliable replacement motor with a capacitor start/capacitor run design for high starting torque and improved efficiency.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/208-230 V
• Amperage: 11.0/5.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame

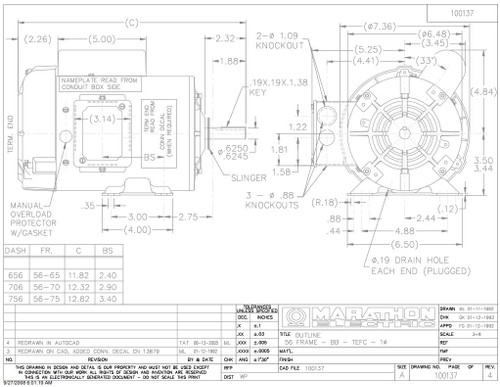

• Shaft Dimensions: 5/8" diameter x 1 7/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

The motor features a flat rigid base mount for straightforward installation and includes a shaft slinger and condensate drains to protect against environmental contaminants. It is constructed with Class F insulation and a fully gasketed, totally enclosed design suitable for dirty environments. Manual overload protection and a low temperature manual reset thermal protector enhance operational safety and reliability.
