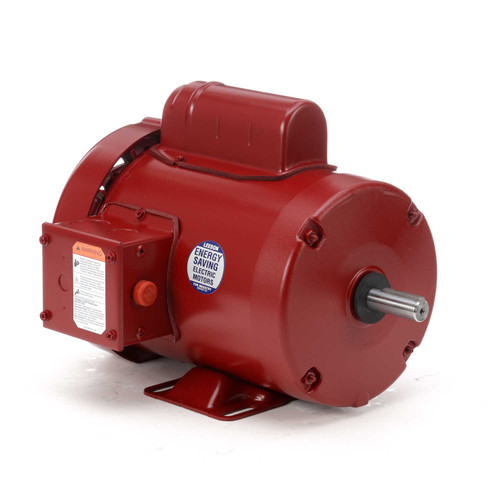

1 hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230V Marathon Electric Motor # F104

SKU:
F104
Availability:
OUT OF STOCK - SEE LEESON 110088
Weight:
30.00 LBS
Shipping:
Free Shipping
$239.83

CURRENTLY OUT OF STOCK

  • 1 hp 1725 RPM, 13.4/6.7 amps, 115/208-230 volts 60hz
  • TEFC - Totally Enclosed Fan cooled - Electrically Reversible
  • Manual Overload Protection - Service Factor 1.15
  • NEMA 56 Frame - Flat Rigid base mount - 5/8" Diameter shaft x 1 7/8"
  • Class F Insulated - Ball Bearings w/low temp grease
  • Overall Length - 12.82 inches
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains
  • Shaft slinger
  • 1 Year Manufacture Warranty

Agricultural Motor

Cross Ref: Model 056C17F5327, Leeson 110088.00
