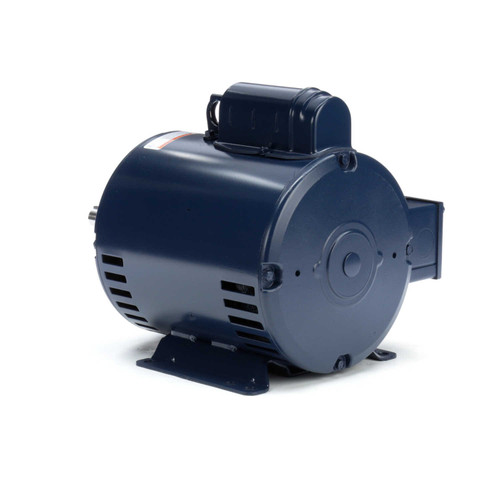

Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor
Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor

Marathon

Z405A Marathon 2 hp 1750 RPM 182JM Frame 230V ODP Marathon Motor

(No reviews) Write a Review
$805.92
$690.00
SKU MZ405A
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 2 HP
RPM 1750
Phase Single Phase
Frame 182JM
Enclosure ODP
Hertz 60 Hz
Amperage 23.0/11.5 Amps
Insulation Class Class F
Mounting Rigid Base
Duty continuous duty
Adding to cart… The item has been added
Description
  • 2 hp 1750 RPM 184JM, 23.0/11.5 amps 115/230 Volts 60hz. single Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Capacitor Start/Induction Run
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base and NEMA JM pump shaft. Wiring diagram on motor name plate.

Model: 182TCDW7074; Replaces Leeson 182TCDW7074; 132073.00, 132073; Dayton 26ZY35

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 2 HP
RPM 1750
Phase Single Phase
Frame 182JM
Enclosure ODP
Hertz 60 Hz
Amperage 23.0/11.5 Amps
Insulation Class Class F
Mounting Rigid Base
Duty continuous duty
!
