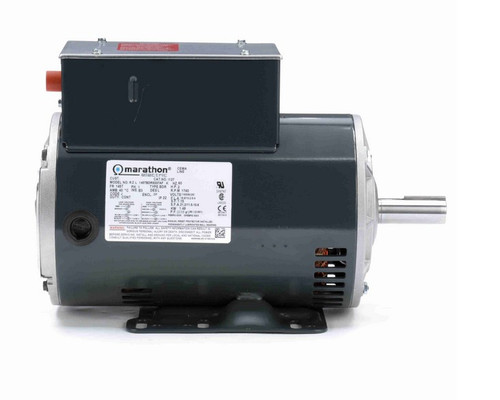

I127 Marathon 2 hp 1800 RPM 145T Frame 115/208-230V Open Drip Marathon Electric Motor

I127 Marathon 2 hp 1800 RPM 145T Frame 115/208-230V Open Drip Marathon Electric Motor

This Marathon general-purpose electric motor delivers 2 horsepower at 1800 RPM and is designed for single-phase applications. It replaces Leeson P145K17DB38F (120879.00) and is suitable for various industrial and HVAC equipment requiring a reliable capacitor start/run motor.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 18.8/10.2-9.4 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 145T Frame
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a wiring diagram on the nameplate for easy electrical setup. It has a service factor of 1.15 and requires manual overload protection. The capacitor start/run design ensures efficient starting and operation in a variety of applications.

Cross Reference

• Leeson P145K17DB38F, 120879.00

Warranty

1 Year Manufacturer Warranty
