CG381 Marathon 2 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
CG381 Marathon 2 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor
$701.50
$599.95
SKU
CG381
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
2 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
11.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base

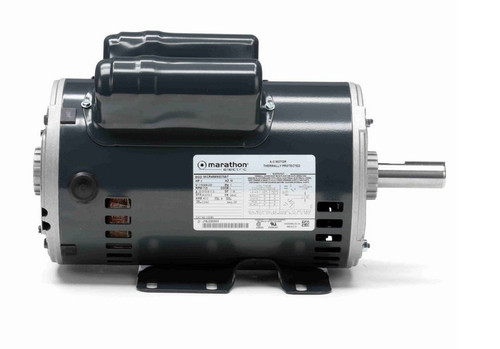

CG381 Marathon 2 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor
This Marathon 2 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is suitable for replacing or upgrading existing motors with similar specifications in HVAC and industrial equipment.
Key Specifications
- Horsepower: 2 hp
- RPM: 1800
- Voltage: 115/208-230 V, 60 Hz
- Amperage: 22.0/10.9-11.0 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a capacitor start/run design with a service factor of 1.15 and automatic overload protection for enhanced durability. It includes a rigid base mount for secure installation and a wiring diagram located on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 11.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
