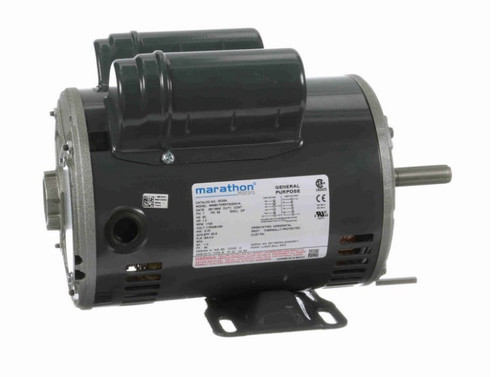

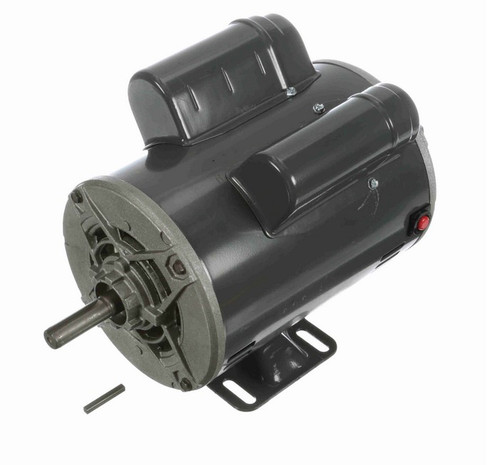

S039A Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor

SKU:: S039A
UPC:: 7.23E+11
Weight:: 37.00 LBS
Width:: 9.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
STATUS:: On Sale
Voltage:: 115/208/230V
Horsepower:: 1 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 4.0 Amps
Bearings:: Ball Bearings
Service Factor:: 1.25
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

$561.66

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

S039A Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor

This Marathon 1 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is suitable for replacing or upgrading motors in HVAC systems and various industrial equipment.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 115/208-230 V, 60 Hz
Amperage: 8.0/4.4-4.0 A
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with a service factor of 1.25 and manual overload protection. It includes a rigid base mount for stable installation and comes with a wiring diagram located on the motor nameplate for easy setup. The open drip proof enclosure allows for use in environments where moderate exposure to moisture is expected.
