sale
Marathon
C182A Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
C182A Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor
$516.70
$453.22
SKU
C182A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
4.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base

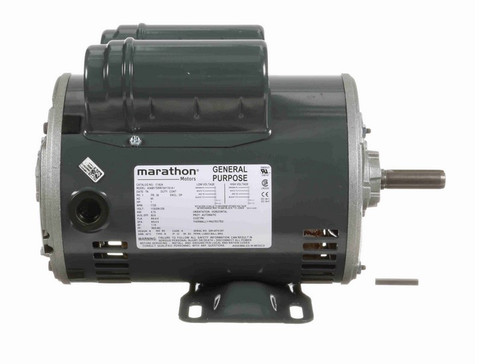

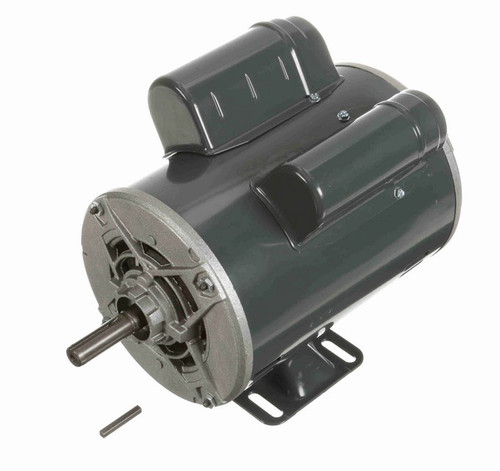

C182A Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor
The Marathon C182A is a general-purpose single-phase electric motor designed for versatile industrial and HVAC applications. It replaces Leeson model A6K17DB56A and is suitable for equipment requiring a reliable 1 hp motor with a capacitor start/run design.
Key Specifications
- Horsepower: 1 hp
- RPM: 1800
- Voltage: 115/208-230 V, 60 Hz
- Amperage: 8.0/4.4-4.0 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features a rigid base mount for stable installation and includes a wiring diagram on the motor nameplate for easy setup. It is equipped with Class B insulation and an automatic overload protection system. The motor’s capacitor start/run design ensures efficient starting and operation across various applications.
Cross Reference
- Leeson A6K17DB56A, E110000.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
- Leeson A6K17DB56A, E110000.00
