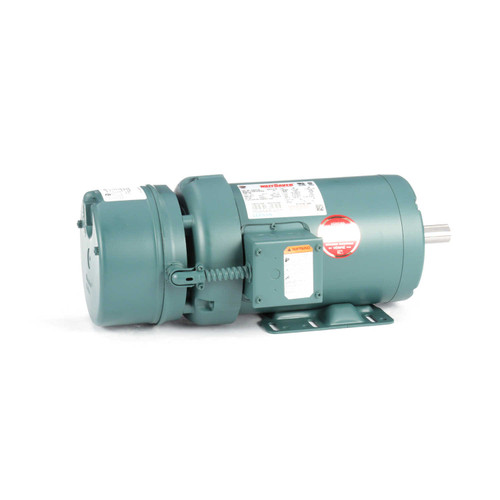

This Leeson 2 hp brake motor operates at 1800 RPM and is designed for three-phase industrial applications requiring reliable braking performance. It replaces model G120330.00 and features a NEMA 145T frame suitable for various machinery setups.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 5.8/2.9 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

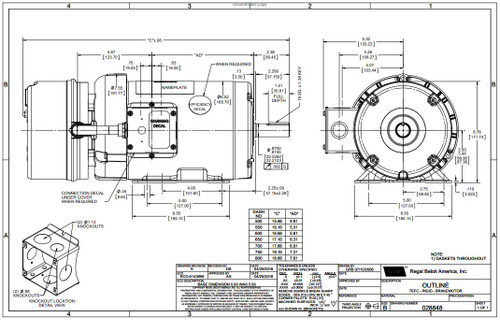

• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" diameter x 2 1/4" length

Product Features & Fitment

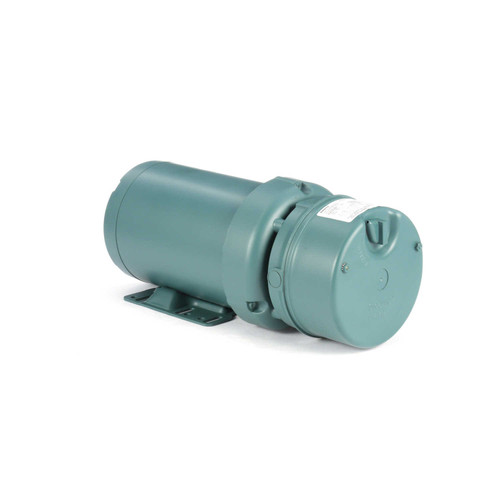

This motor includes a fail-safe, spring-set brake manufactured by Stearns, which automatically stops and holds the load when power is turned off. The brake coil leads are routed into the motor’s conduit box for easy wiring and can be configured to operate either when power to the motor is shut off or independently. A power-off manual release is included for convenience and emergency use, resetting automatically. The brake coil operates at 230/460 VAC, 60 Hz.

Cross Reference

• G120330.00

Warranty

1 Year Manufacturer Warranty
