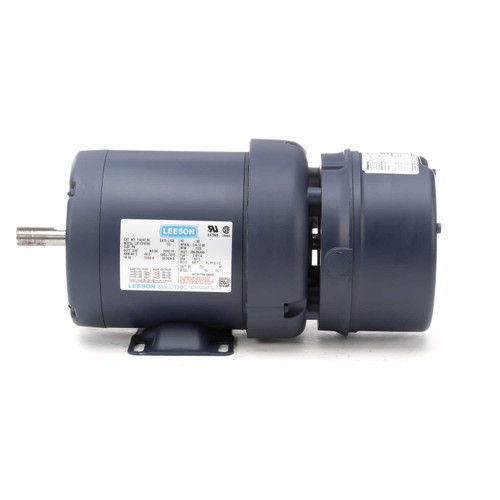

114147.00 Leeson | 3/4 hp 1800 RPM 56 Frame TEFC Brake Motor 208-230/460V

114147.00 Leeson 3/4 hp 1800 RPM 56 Frame TEFC Brake Motor 208-230/460V

This Leeson brake motor delivers reliable performance with a 3/4 horsepower, 1800 RPM, three-phase design suitable for industrial applications requiring controlled stopping and holding torque. It replaces standard motors where fail-safe braking is essential, featuring a spring-set brake that automatically stops the load when power is removed.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 2.8/1.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

The brake is spring-set for fail-safe operation and manufactured by Stearns, featuring a power-off manual release that resets automatically for convenience and emergency use. Brake coil leads are routed into the motor’s conduit box for easy wiring and can be configured to actuate when motor power is off or independently. The brake coil operates at 230/460 VAC, 60 Hz. This motor has a service factor of 1.15 and Class B insulation but does not include overload protection.

Warranty

1 Year Manufacturer Warranty
