114160.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face (No Base) Brake Motor 208-230/460V

114160.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face (No Base) Brake Motor 208-230/460V

This Leeson 3/4 horsepower brake motor is designed for industrial applications requiring reliable braking and controlled stopping. It replaces standard motors where a fail-safe, power-off brake is essential for safety and operational efficiency.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 2.8/1.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

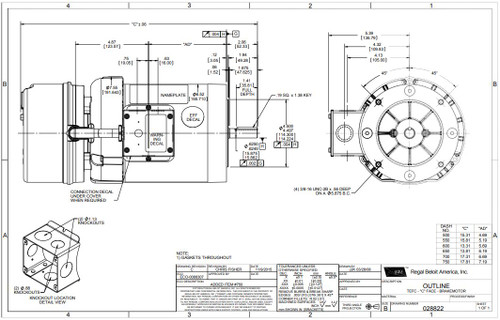

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

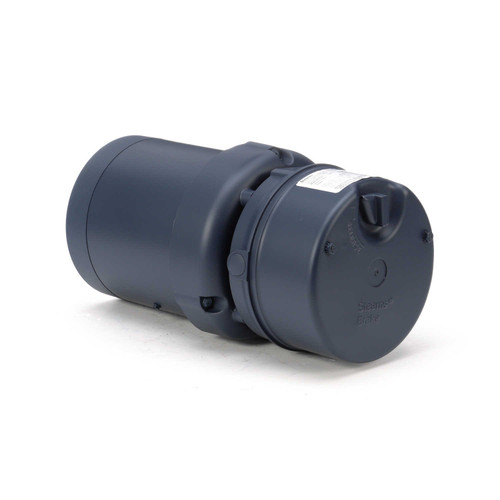

This motor features a round body design with no base, equipped with a C-face mounting configuration for direct coupling. The brake is spring-set for fail-safe operation, automatically stopping and holding the load when power is removed. It includes a power-off manual release that resets automatically, allowing manual brake disengagement during power failures. The brake coil (230/460 VAC, 60 Hz) leads are routed into the motor’s conduit box for easy wiring and can be actuated independently of motor power. The brake system is manufactured by Stearns, providing reliable and consistent braking performance.

Warranty

1 Year Manufacturer Warranty
